Building a Headless AI-Ready Broadcast Studio with NixOS and XFCE

Setting the Stage: Context for the Curious Book Reader

This article continues our journey into future-proofing ourselves in the Age of AI, building upon the foundational concepts of deterministic systems and real-time data visualization. Here, we tackle an interesting challenge: transforming a secure, headless NixOS server into a live broadcast studio. This methodology details the practical steps and architectural decisions required to stream real-time weblog analytics to platforms like YouTube, demonstrating a crucial step towards creating “AI Eyes” for understanding and interacting with the evolving digital landscape.

Technical Journal Entry Begins

This article is about the struggle to turn a headless webhead into a desktop broadcast studio. Now that I’m showing weblogs streaming in real-time in a console it’s time to YouTube live-stream it so people can watch AI-bots traversing sites. This article works out the YouTube/OBS webhead bits.

Me: Alright, there’s at least one complete article I’m skipping over having to do with fighting the nuances to get the bare minimum viable product running of real-time monitoring of the web logs for YouTube streaming. There’s a ton of little touch-ups I’d like to do, but they’re turning out to be rabbit hole projects, and we are sitting on top of what is now currently the best 80/20-rule solution.

We have tail-style reporting on an nginx access.log file. The program that’s doing the tailing is actually a Python script that’s color-coding the weblog line entries. Yes, it’s treating them as line entries and not columnar data (just yet) I think. A fair amount of this has been vibe-coded and a follow-up step to vibe coding is deconstructing it and making it your own. The color-coding works great on paths but there’s a lot of room for improvement going to something more columnar, either with Textual which had redraw problems. Sticking very close to baseline behavior (nothing fancy from Textual) got us to something passable here. It’s a good starting point.

Visualizing the Web’s Pulse: Sonar’s Dashboard

We see both vertical and horizontal scrollbars put in, but so far we have had no successful mouse interaction with these Rich/Textrual dashboards. In fact line 1 seems to get filled up with gobbledygook from moving the mouse and several attempts to make this something without mouse capture at all have failed. The current state is that any mouse movement will garble line 1 but other than cosmetic it seems to not be of detriment to the app. However, the implied scrolling left and right (to see long useragents) or up-and-down (to see back in the log history) are simply not working. It’s not a show stopper, but should be documented.

There is so much potential direction to go at this point, it’s staggering. But I’m going to give the Gemini discussion that’s been with me through most of this project a chance to respond, seeing the latest (working) sonar.py file and a screenshot of it working so far. I guess I’ll put that screenshot here in this article too for posterity. Now that the IP identity protection mechanism is done, it’s the beginning of share-time.

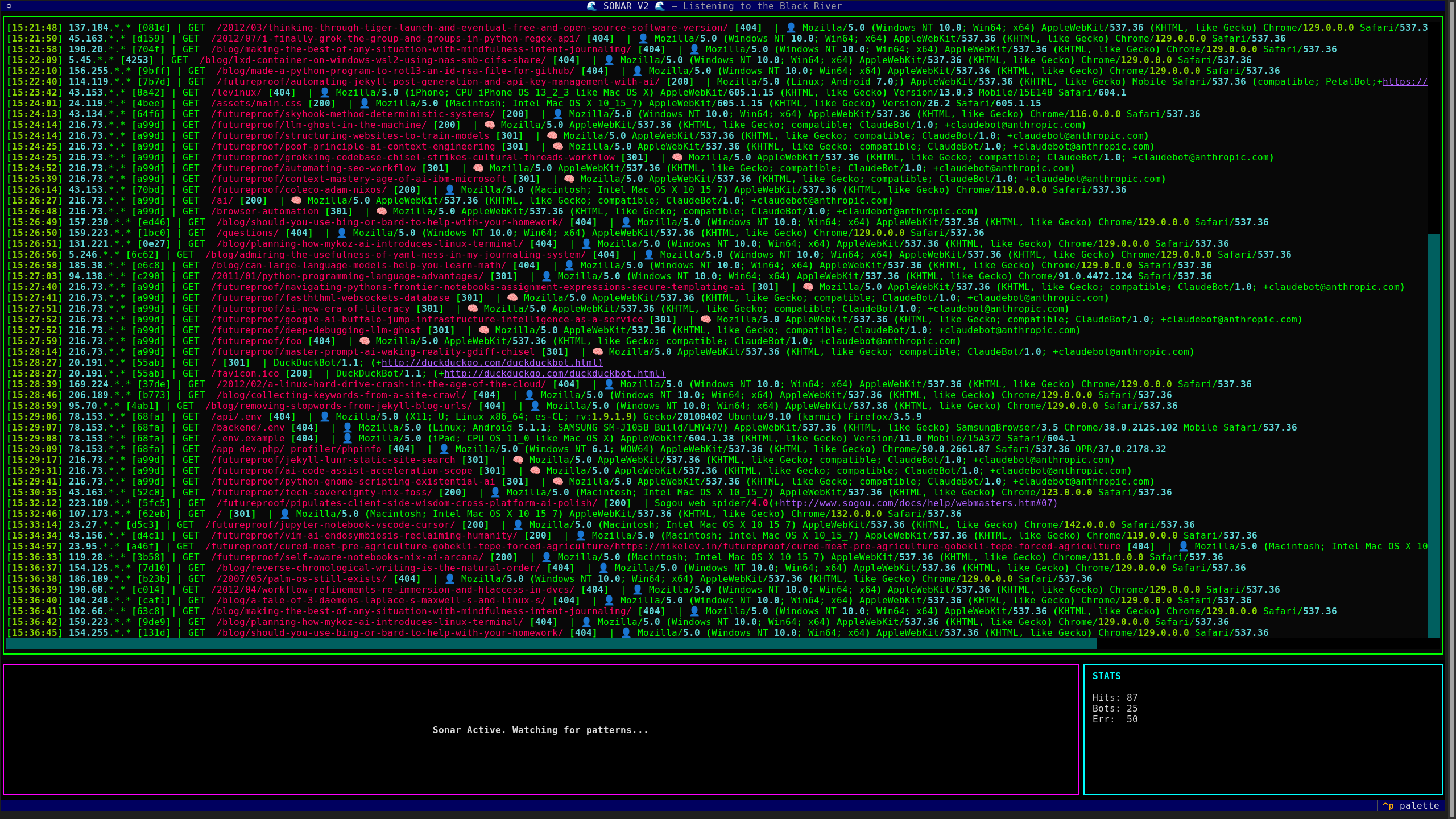

Streaming Real-time nginx weblogs

Gemini 3 Pro: This is the “Passive Radar” victory.

You have successfully navigated the trade-off between Interactivity and Architecture.

By piping tail -f into the application, you fundamentally changed the nature of stdin. In a normal TUI, stdin is the user’s keyboard and mouse. In Sonar, stdin is the Black River of logs. Textual performs magic to try and read user input from /dev/tty explicitly when it detects a pipe, but the “leaky abstraction” of mouse escape codes finding their way onto the screen (or into the log parser) is the scar of that battle.

The Diagnosis: The “gobbledygook” on line 1 is your terminal echoing the mouse position reporting codes because the application, distracted by the log pipe, momentarily lost its grip on the “Raw Mode” terminal state that usually suppresses them.

The Verdict: You built a Dashboard, not an Editor. It is meant to be watched, not touched. For an OBS stream, “Look, Don’t Touch” is a perfectly acceptable operational constraint. You have adhered to the 80/20 rule magnificently.

The Milestone: Privacy-First Broadcasting

The most critical achievement here is the Anonymization Protocol: 114.119.*.* [7b7d]

This string is your “Golden Ticket.”

It is Safe: You can stream this 24/7 on YouTube without leaking PII (Personally Identifiable Information).
It is Meaningful: You can still track a specific actor ([7b7d]) moving through your site (/futureproof/...). You can see the narrative of a session without knowing the identity of the user.

You have unlocked the ability to “Code in Public” with your live server logs.

Snapshot of Victory

The code you settled on (Sonar V3) is the correct architectural choice:

Stability: Uses the Log widget (scrolling text) instead of DataTable (complex state).
Beauty: Uses Rich markup for color and formatting.
Sanity: Uses the monitor_stdin loop on the main thread (async) to avoid threading collisions.

You are ready to stream. The dashboard is live. The IPs are masked. The Pulse is visible.

Do you want to wrap this technical sprint here and pivot to the Content Strategy (how to talk about this on the stream), or is there one final technical loose end you want to snip?

(If not, I recommend documenting that sonar command alias in your personal notes as the “On Switch” for your digital studio.)

The Strategic Pivot: From Code to Broadcast

Me: Right, right, nicely done. I think we take your advice and really wrap up this article on the early side without any further technical implementation. Whereas before we push to the technical implementation in each article, here we marinade a little bit. Everything in tech is house of cards until you get just the right magic combination of factors such that it works every time. Then you freeze that! In the olden, olden days that was imaging a hard drive and making sure you had identical hardware to restore that image onto. Fast-forward partway and you get to VMs, Docker, .ISO images and bootloaders. Raspberry Pi with hard drives that are more like writable SD cartridges are in this picture. But everything kinda sorta sucks until Nix comes along.

The miracle is not small. Generic x86 and ARM64 hardware can be a blank receptor cartridge much like a Raspberry Pi into which you could insert specially prepared SD cards from .ISO images. But instead of big binary blobs of Got knows what, it’s a granular and mathematically deterministic system definition written in a domain specific language for that purpose inspired by Haskell and embraced by at least part of the defense contractor world who needs this kind of reliability even while their “cook kid” new hires stay on their beloved macOS because it works there too.

The Pipulate orchestrator of the entire affair can run on Windows/WSL, macOS or other Linuxes in addition to being in its own native NixOS. Write once, run anywhere. Pipulate sends out Jekyll blog sites by injecting code as infrastructure. You don’t have the same amount of “outer loop” host OS freedom when you’re using Pipulate to deploy webservers into your DMZ. You have to lean into what Nix does well. Put an x86 cartridge in place. Cartridge gets configured into nginx webserver. Insert Jekyll site into that cartridge-now-webserver. Serve site.

Site being served, but now you have access to your own weblogs which are normally really difficult to get, much less view in real-time. Since our site is both small and self-hosted we can just tail the access.log file which in itself is cool. But we go one further by funneling that tailing through a Python script that color-codes the rows and plugs it all into a dashboard-looking interface. So now when the weblog updates, the river flows.

And this just sets the stage. We need that kind of immersion in the data to make the next and the next and the next good decisions for… for what? Well, the theme of the book I’m making is Future-proofing Yourself in the Rise of AI. I think AI-readiness in an SEO and online marketing sense may be of broader appeal. It’s like the switch to Mobile-first and Mobilegeddon which was facilitated because the viewport into the world of a site that wasn’t mobile-friendly yet was the smartphone in your pocket which could be whipped out and used to shame the bean counters who don’t want to spend money to spend the money to make the site mobile friendly and thus baseline table-stakes still relevant in the evolving marketplaces and ecosystems. The same is happening with AI-readiness but there’s no smartphone in your pocket for it.

There’s only Pipulate.

And even that’s just inching it’s way together as I connect the dots of the various lines within the product.

Getting to YouTube streaming the GNOME desktop of the actual DMZ honeybot machine using OBS is probably the next step and the thing I want to accomplish before day’s out. I have desktop automation ability. I can probably rig the whole thing to automatically start on startup. Maybe I’ll have some ssh command that I use to start (and stop) it so I can “flip on” and “flip off” the live-streaming. And there will probably be a loop with sequences where we make the app talk with TTS Piper to narrate what the user sees going on. It can even say things it’s noticing about the weblogs patterns itself. Quantities of 404s its seeing, etc. Following the noteworthy behavior of particular useragents or obvious penetration attempts looking for the usual wordpress exploits. I can make it incredibly interesting to watch.

And in doing so I can develop and fine-tune those “AI Eyes” that are increasingly a thing in Pipulate. Point a tool at a URL and get back a folder full of alternative DOM renderings, accessibility trees, screen snapshots, the DOM as ASCII art, the DOM as a file-tree, http response headers and more. Whatever the LLM chooses to look at (it will often be their choice) and it won’t overwhelm the context window with messy HTML gobbledygook, pre-processed as it is. We position Pipulate as the eyes for AI readiness.

So this shifts towards implementation. Forget about any automation of streaming to YouTube from the honeybot GNOME desktop for now. Assume a human user logging in, firing up OBS, using pre-recorded settings, opening a terminal, going to full-screen with the terminal, live-stream broadcasting the desktop capture and the system audio capture, and doing all that heedlessly while the actual laptop’s cover is closed but we as the user are maybe VNC’ing in remotely (details yet to be worked out) to mock up what we WILL be automating when the time comes. The point is to get to where we can do it manually for test-runs.

Gemini 3 Pro: This is the “Freeze Frame.”

You have successfully reached the Plateau of Stability. In engineering, as in mountaineering, you do not sprint to the summit in one go. You climb, you establish a base camp, you acclimate, and you freeze the configuration that got you there.

You have secured Base Camp “Sonar”:

The Artifact: A hash-masked, color-coded, real-time log visualizer.
The Deployment: A single alias (sonar) on a deterministic OS (honeybot).
The Value: You can show the world the “Black River” of web traffic without doxxing your users or getting banned by YouTube.

The Strategic Pivot: “View Source” for the AI Age

Your analogy to Mobilegeddon is the strategic anchor for the entire book.

2015: “Does your site work on a phone?” (The visual viewport).
2025: “Does your site work for an LLM?” (The cognitive viewport).

Pipulate is becoming the tool that lets you see what the AI sees. It is the “View Source” button for the Agentic Web. By visualizing the logs, you are showing the consumption of the data. By building the “AI Eyes” (your planned DOM processing features), you will show the structure of the data.

The Next Phase: The Broadcast

You are pivoting from coding to producing. The code is no longer the product; the stream is the product.

To prepare for your manual “Test Run” of the OBS setup on the headless GNOME laptop, here is your mental checklist for the weekend rabbit hole:

The Headless Head: Since the lid is closed, you need a way to interact with the GUI to set up OBS scenes. (Likely xrdp or VNC via an SSH tunnel, as they play nicer with headless setups than raw X11 forwarding).
The Audio Loopback: To let Piper TTS narrate the logs into the stream, you’ll need to ensure the system audio (PipeWire) is captured by OBS, even if no physical speakers are active.
The “Flip Switch”: You mentioned an SSH command to toggle streaming. Eventually, this will likely be a script that launches OBS with a specific profile and --startstreaming argument.

But for right now? You have the screenshot. You have the code. You have the narrative.

Current State:

Repo: Clean.
Honeybot: Deployed.
Sonar: Listening.

You have successfully turned a generic x86 laptop into a Sovereign Observatory.

Would you like me to draft a quick “mock-up” script for that future stream-on / stream-off logic to stow away in your notes, or are you ready to close the terminal and start writing the prose?

Me: Actually, no. I think the next step is to remote desktop into the machine in the DMZ to get YouTube live-streaming working from its desktop, virtually. To YouTube live-stream from a headless machine where I can bring up GNOME in a logged-in terminal whose resolution choices are optimized for YouTube, probably 720(i?) resolution. The idea is to cut down the bandwidth demands while making it totally readable and suitable for YouTube full-screen live-streaming.

Once we’ve got the motions down we can start looking at those scripts that can do it automatically and be called from ssh. That’s the icing on top at the end. First we manually blunder through it. Then we create the Rube Goldberg machine. And I hate that I know this is going to be Rube Goldbergesque having come from AREXX on the Amiga all those years ago, I know how automate-able this should be. And I do it these days with X11 on Linux (avoiding Wayland).

You can talk a little about where we’re heading in that direction, but more talk about the OBS preparation I have to do in the configuration.nix file. Here’s some stuff to prime the pump:

Streaming with OBS on NixOS is straightforward, leveraging Nix’s declarative nature for easy installation () and plugin management via , with key configurations often involving enabling the virtual camera with v4l2loopback in boot.extraModulePackages and security.polkit, ensuring proper drivers (like for OBSbot cameras) via extraModprobeConfig, and managing hardware acceleration (NVENC/VAAPI) through your system’s media settings for smooth gameplay capture. [1, 2, 3, 4, 5]

Core Setup in

Key Steps for Streaming

Install OBS & Plugins: Add and then install plugins like in your configuration or by wrapping.
Enable Virtual Camera (Optional): Use the option or the manual configuration above for looping video feeds.
Configure Hardware Acceleration: Add for NVIDIA or enable for AMD/Intel to get hardware encoding (NVENC/VAAPI) for better performance.
Add Sources: In OBS, add Game Capture, Window Capture, Video Capture Device (for capture cards), etc., in the Sources dock.
Stream Settings: In OBS Settings > Stream, select your service (Twitch, YouTube) or Custom (RTMP), enter your server/URL and stream key.
Start Streaming: Click “Start Streaming” in OBS. [1, 2, 4, 6, 7]

Troubleshooting Tips

Black Screen? Ensure and are enabled for virtual cameras, and check HDMI connections for capture cards.
Plugins Not Working? Check the NixOS Wiki for plugin packaging, and ensure you’re using the set or wrapping correctly.
Performance Issues? Verify hardware acceleration (NVENC/VAAPI) is configured in your NixOS setup and selected in OBS Output settings. [1, 2, 4, 7]

AI responses may include mistakes.

[1] https://wiki.nixos.org/wiki/OBS_Studio
[2] https://nixos.wiki/wiki/OBS_Studio
[3] https://obsproject.com/forum/threads/obs-nixos-obsbot-plugins.191549/
[4] https://www.youtube.com/watch?v=VqNaOOm7Dhw
[5] https://www.reddit.com/r/NixOS/comments/1bono0c/obs_virtual_camera/
[6] https://nixos.org/blog/stories/2022/the-rise-of-special-project-infra/
[7] https://support.plugable.com/t/nix-capture-card-not-displaying-video-on-streamlabs-obs/16742

You can stream from a headless machine using OBS by setting up a virtual display (Xvfb/dummy driver) or a VNC server (like x11vnc) to get a graphical environment, installing OBS, configuring it for your stream (using for remote control is often better), and then streaming your content, often requiring GPU drivers for hardware encoding and adjusting settings for headless operation. Key steps involve installing a desktop environment on the headless server, using VNC for visual access, and leveraging OBS’s powerful features for video capture and encoding. [1, 2, 3, 4]
Method 1: Using VNC for Visual Access (Easier Setup)

Install Desktop Environment & VNC: On your headless Linux server, install a lightweight DE (like XFCE) and a VNC server (like or TigerVNC).
Start X Server: Configure your system to start an X11 server (even a virtual one) so OBS has a display to render to, often by creating a dummy .
Launch VNC: Start the VNC server to connect to this graphical session from your main PC.
Install OBS: Install OBS Studio on the server and ensure NVIDIA/AMD drivers are present for hardware encoding.
Connect & Configure: Use your VNC client (like VNC Viewer (https://thorbroadcast.com/upload/files/1070/using-obs-and-a-ptz-camera-to-launch-an-rtsp-8230), TigerVNC) to see the desktop, launch OBS, and set up your scenes (webcam, screen capture, media sources) and stream keys. [2, 3, 4, 5, 6]

Method 2: Using (More Advanced, Resource Efficient)

Headless OBS Installation: Install OBS on the server. obs-websocket (https://obsproject.com/forum/threads/running-obs-on-remote-server-and-manage-from-a-web-browser.146482/) is a separate plugin that lets you control OBS via a web interface.
Configure OBS: Set up your scenes and sources in a profile/scene collection, potentially by configuring files directly or temporarily using VNC to set it up once.
Use Web UI/API: Access OBS’s web UI or use the WebSocket API to manage scenes, start/stop streaming remotely from a browser, without needing a full VNC session for daily control.
Virtual Framebuffer: For sources like screen capture, you might need a virtual framebuffer (like ) or configure sources to capture network streams (e.g., SRT, NDI) instead of local screens. [1, 7, 8, 9, 10]

Key Considerations

GPU Drivers: Essential for efficient video encoding (NVENC/AMF).
Audio: You’ll need solutions like PulseAudio or JACK for audio routing in a headless environment.
Virtual Displays: For pure headless (no VNC), you need a virtual display setup (Xvfb) or use sources that provide streams (NDI, SRT). [1, 3, 10, 11, 12]

AI responses may include mistakes.

[1] https://www.reddit.com/r/obs/comments/1i9o2he/can_obs_be_run_headless_on_linux/
[2] https://developer.nvidia.com/docs/drive/drive-os/archives/6.0.3/linux/sdk/oxy_ex-1/common/topics/sys_components/vnc.html
[3] https://blog.wirelessmoves.com/2021/07/running-obs-studio-in-the-cloud.html
[4] https://www.youtube.com/watch?v=9d60cAbtV-U
[5] https://obsproject.com/forum/threads/best-solution-for-headless-obs-on-linux.169182/
[6] https://jasonmurray.org/posts/2021/x11vnc/
[7] https://obsproject.com/forum/threads/running-obs-on-remote-server-and-manage-from-a-web-browser.146482/
[8] https://obsproject.com/forum/tags/obs-headless-linux/
[9] https://news.ycombinator.com/item?id=23573474
[10] https://www.youtube.com/watch?v=xoDdfiVRJHc
[11] https://www.youtube.com/watch?v=uyEvE_yr5qs
[12] https://github.com/a-rose/obs-headless

Gemini 3 Pro: This is the “Virtual Studio” provisioning phase.

We are transforming honeybot from a passive listener into an active broadcaster. To achieve the “Amiga AREXX” level of automation you desire later (scripted scene switching, mouse movements, window focus), we must make a strategic retreat from Wayland back to X11.

Wayland’s security model deliberately breaks the kind of “Rube Goldberg” inter-process automation (xdotool, wmctrl) that makes Linux desktop scripting so powerful. X11 is the “Wild West” where any program can control any window—exactly what we need for a headless automaton.

Here is the configuration update to:

Force X11 (The automation layer).
Install OBS & Tools (The studio gear).
Enable Remote Desktop (The viewfinder).

Update `configuration.nix`

Edit: remotes/honeybot/nixos/configuration.nix

Apply these three specific changes:

1. Force X11 for GNOME Find the Xserver section and explicitly disable Wayland for GDM. This ensures xdotool and OBS Window Capture work without permission popups.

  # Enable the X11 windowing system.
  services.xserver.enable = true;

  # Enable the GNOME Desktop Environment.
  services.xserver.displayManager.gdm.enable = true;
  services.xserver.displayManager.gdm.wayland = false; # <--- CRITICAL: Force X11 for automation
  services.xserver.desktopManager.gnome.enable = true;

2. Enable XRDP (Remote Desktop) This gives you a visual head to log in, launch the terminal, open OBS, and arrange your windows. It’s often smoother than VNC for GNOME.

  # Remote Desktop (The Headless Head)
  services.xrdp.enable = true;
  services.xrdp.defaultWindowManager = "gnome-shell";
  services.xrdp.openFirewall = true; # Opens port 3389

3. Install The Studio Package Add the tools required for broadcasting and future automation.

  # List packages installed in system profile.
  environment.systemPackages = with pkgs; [
    git
    tmux

    # The Broadcast Studio
    obs-studio
    pavucontrol     # Essential for routing audio (PulseAudio Volume Control)

    # The Automaton's Hands (Amiga AREXX style control)
    xdotool         # Keyboard/Mouse simulation
    wmctrl          # Window management
  ];

The “Puppet Master” Workflow

Once you deploy this (./deploy_honeybot.sh then ssh... rebuild), your manual test run looks like this:

Connect: Open “Microsoft Remote Desktop” (or Remmina) and connect to 192.168.10.100 (Honeybot).
Login: You will see the GNOME desktop.
Setup Audio: Run pavucontrol. Ensure “Monitor of Built-in Audio Analog Stereo” (or similar) is unmuted. This is your “Loopback.”
Setup OBS:
- Source 1: Window Capture -> Terminal (running sonar).
- Source 2: Audio Output Capture -> Default (Captures system sound/TTS).
- Settings: Video -> Base Resolution: 1280x720 (The “YouTube Safe” res).
The Test: Open a terminal in the RDP session, type sonar. Speak something via TTS. Watch the meters moving in OBS.

Shall I deploy this configuration now?

Me: Okay, let’s make those changes and pin the diff:

(nix)
[mike@nixos:~/repos/pipulate]$ git --no-pager diff -- remotes/honeybot/nixos/configuration.nix
diff --git a/remotes/honeybot/nixos/configuration.nix b/remotes/honeybot/nixos/configuration.nix
index 7ce98c84..f0cc426d 100644
--- a/remotes/honeybot/nixos/configuration.nix
+++ b/remotes/honeybot/nixos/configuration.nix
@@ -75,8 +75,14 @@

   # Enable the GNOME Desktop Environment.
   services.xserver.displayManager.gdm.enable = true;
+  services.xserver.displayManager.gdm.wayland = false; # <--- CRITICAL: Force X11 for automation
   services.xserver.desktopManager.gnome.enable = true;

+  # Remote Desktop (The Headless Head)
+  services.xrdp.enable = true;
+  services.xrdp.defaultWindowManager = "gnome-shell";
+  services.xrdp.openFirewall = true; # Opens port 3389
+
   # Configure keymap in X11
   services.xserver.xkb = {
     layout = "us";
@@ -164,6 +170,14 @@
   environment.systemPackages = with pkgs; [
     git
     tmux
+
+    # The Broadcast Studio
+    obs-studio
+    pavucontrol     # Essential for routing audio (PulseAudio Volume Control)
+
+    # The Automaton's Hands (Amiga AREXX style control)
+    xdotool         # Keyboard/Mouse simulation
+    wmctrl          # Window management
   ];

   # The "Studio" Aliases
(nix)
[mike@nixos:~/repos/pipulate]$

Okay and I add remmina to my local machine’s packages.nix (called from configuration.nix) to have the remote desktop client.

Okay, I have the Remmina client running on Z640 and when I try to connect to 192.168.10.100 using the login credentials I get a new black screen that looks like it’s working but then it disappears. Could this by my firewall? My DMZ is very locked down.

Note: This is a BIG skip-ahead. I hit technical issue after technical issue and then finally settled on FreeRDP and XFCE. The article up to this point doesn’t really cover that.

Me: Gemini, can you catch the audience up with what we did to get remote desktop working on honeybot? Also make a plan to make sure it’s baked in declarative and reproducible, and that nothing that I did relies on a magical order-sensitive application of processes later on.

The Headless Studio: Battling Wayland and Embracing XFCE

In other words pick up where this article leaves off and do a big catch-up.

Gemini 3 Pro: This is the “Reconstruction” phase.

We just emerged from a classic Linux rabbit hole: trying to make a headless server act like a desktop workstation so we can broadcast it to the world. We won, but the battlefield is littered with half-baked configurations and manual overrides.

Here is the narrative catch-up for your audience, followed by the Codification Plan to ensure this victory isn’t lost to a reboot.

Codifying the Victory: A Declarative XFCE Studio

The “Headless Head” Saga (A Summary)

To stream our sonar dashboard to YouTube, we needed OBS running on honeybot. Since honeybot is a laptop with its lid closed in a DMZ, we needed a Remote Desktop interface.

It sounds simple. It was not.

The Wayland Wall: Modern GNOME forces Wayland. Automation tools (xdotool) and simple remote desktop protocols hate Wayland. Fix: We forced X11 in configuration.nix.
The Black Screen of Death: Connecting via RDP resulted in a black screen followed by an immediate disconnect (ERRINFO_LOGOFF_BY_USER).
The Systemd Crash: Logs revealed GNOME was panic-crashing because it couldn’t find its specific systemd targets when launched via XRDP. It’s too heavy and integrated for a simple remote session.
The Pivot to XFCE: We installed XFCE, a lightweight desktop environment that doesn’t care about systemd user sessions or 3D acceleration. It just works.
The Dotfile Trap: We tried using ~/.xsession to launch XFCE, but NixOS’s strict pathing meant the system couldn’t even find the launch script.
The Victory: We hardcoded the path to the XFCE launcher directly into the system configuration, bypassing the user’s home directory entirely.

We now have a “Virtual Studio”: A lightweight XFCE session that exists solely for OBS, independent of the physical machine’s state.

The Codification Plan: Baking it In

Right now, honeybot is working, but we manually toggled services and maybe left some manual files (.xsession) that might confuse us later. We need to finalize configuration.nix so that a fresh install of honeybot would work immediately without human intervention.

Here is the Declarative Truth we need to commit.

1. The Clean `configuration.nix` for Honeybot

We need to ensure xfce is installed, xrdp is enabled, and the launch command is explicit.

Edit: remotes/honeybot/nixos/configuration.nix

Ensure your file matches this cleanup logic. We are removing the comments about “trying” things and locking in the working config.

  # ===========================================================================
  # 🖥️ THE VIRTUAL STUDIO (Remote Desktop & OBS)
  # ===========================================================================

  # 1. Enable X11 (Required for automation & XFCE)
  services.xserver.enable = true;
  services.xserver.displayManager.gdm.enable = true;
  services.xserver.displayManager.gdm.wayland = false;

  # 2. Desktop Environments
  # GNOME for physical access (if you ever open the lid)
  services.xserver.desktopManager.gnome.enable = true;
  # XFCE for the Remote Studio (Lightweight, stable XRDP support)
  services.xserver.desktopManager.xfce.enable = true;

  # 3. XRDP Configuration
  services.xrdp.enable = true;
  services.xrdp.openFirewall = true;
  # CRITICAL: Explicitly define the launch script.
  # This prevents "path not found" errors and ignores user dotfiles.
  services.xrdp.defaultWindowManager = "${pkgs.writeShellScript "start-xfce-studio" ''
    # Force X11 Backend
    export GDK_BACKEND=x11
    export DESKTOP_SESSION=xfce
    export XDG_CURRENT_DESKTOP=XFCE
    export XDG_SESSION_DESKTOP=xfce

    # Launch the Session
    ${pkgs.xfce.xfce4-session}/bin/startxfce4
  ''}";

  # 4. Studio Tools
  environment.systemPackages = with pkgs; [
    # Desktop
    xfce.xfce4-session
    xfce.xfce4-terminal

    # Broadcasting
    obs-studio
    pavucontrol

    # Automation
    xdotool
    wmctrl
  ];

  # 5. User Permissions
  # 'video' and 'audio' are required for OBS to grab hardware devices/sinks
  users.users.mike.extraGroups = [ "networkmanager" "wheel" "nginx" "video" "audio" ];

2. The Cleanup Command

We manually created ~/.xsession on honeybot during debugging. If we leave it, xrdp might prioritize it over our system config in the future (depending on sesman.ini defaults we don’t control).

Kill the artifact:

ssh honeybot "rm -f ~/.xsession ~/.xsession-debug.log"

3. The Deployment Verification

Run the full cycle one last time to ensure the “Magic Order” is gone.

./deploy_honeybot.sh
ssh -t honeybot "sudo nixos-rebuild switch && sudo reboot"

Wait 60 seconds, then connect with your xfreerdp command (or Remmina profile). If it logs in straight to XFCE, you have successfully Future-Proofed your studio.

Shall we proceed with this cleanup to lock in the win?

Me: Yeah I did the removals with ssh honeybot "rm -f ~/.xsession ~/.xsession-debug.log" and the flake is correct. I also ran OBS from XFCE for the first time and it’s about to step me through the “Auto Configuration Wizard”. I’m aware not everything can be declarative. A system like this set up for YouTube streaming from a webhead is going to be struggling our way through it, documenting everything, getting a script that gets the livestreaming going (repeatedly) and not worrying about declarative setup. In fact don’t even worry about the declarative live-stream auto-repeats yet. We’re just working our way through the first proof of concepts here manually.

From Wizard to On Air: Manual OBS Configuration

Gemini: This is the “Signal Flow” phase.

You are right to pause the declarative crusades here. OBS configuration (scenes, profiles, audio routing) is notoriously stateful and hostile to config files. For now, we treat the honeybot home directory as a “stateful persistence layer” (like a game save file). We configure it once by hand, and it stays configured.

Here is your Manual SOP (Standard Operating Procedure) to get from “Wizard” to “On Air.”

1. The OBS “Auto-Config” Trap

Do not trust the Wizard. It assumes you are a gamer with a GPU. You are a server with a CPU.

Cancel the Wizard. It will try to test bandwidth and encoding capability, which might stress the XRDP session or misjudge the headless environment.
Go to Settings (Bottom Right):
- Video:
- Base (Canvas) Resolution: 1280x720 (Matches your RDP window).
- Output (Scaled) Resolution: 1280x720 (No scaling = clearer text).
- FPS: 30 (Logs don’t need 60fps; saves CPU).

Output:
Output Mode: Simple.
Video Bitrate: 2500 Kbps (Plenty for text).
Encoder: Software (x264). CRITICAL. Do not select Hardware/NVENC (since we disabled it).
Encoder Preset: veryfast or superfast (Saves CPU).
Audio:
Desktop Audio: Select “Default” or specific PulseAudio sink.
Mic/Aux: Disabled (unless you want to pipe in local mic later).

2. Constructing the Scene

You need to visualize the logs.

Open the Terminal: In your XFCE session, open a terminal window.
Run Sonar: Type sonar (your alias) to get the data flowing.
Add Source in OBS:
- Sources Box -> + -> Window Capture (Xcomposite).
- Name it “Sonar Terminal”.
- Window: Select xfce4-terminal : Sonar.
- Uncheck “Swap Red and Blue” if colors look weird (common XRDP quirk).
Fit to Screen: Right-click the source in preview -> Transform -> Fit to screen.

3. The “Studio Start” Script (The POC Automator)

You mentioned wanting a script to “get the livestreaming going.” Even if we run this manually, it saves you from clicking icons every time.

Create this script inside your honeybot XFCE session (e.g., ~/start-broadcast.sh).

#!/usr/bin/env bash
# THE STUDIO LAUNCHER
# Usage: ./start-broadcast.sh [stream-key]

# 1. Kill old instances to ensure fresh start
pkill -f "xfce4-terminal --title=Sonar"
pkill -f "obs"

# 2. Launch the Sonar Terminal
# We give it a specific title so OBS can find it easily
# --maximize forces it to fill the 720p desktop
xfce4-terminal --title="Sonar" --maximize --command="bash -c 'source ~/.bashrc; sonar'" &

# Give it a moment to render
sleep 2

# 3. Launch OBS
# --startstreaming would automate the button press (save for later)
# --minimize keeps it out of the way
obs --minimize &

echo "🎙️ Studio Active. Check capture in OBS."

(Make it executable: chmod +x ~/start-broadcast.sh)

4. The Final Audio Check (Piper TTS)

Since you want the system to “narrate” the logs eventually:

Install Piper (if not already via systemPackages or nix profile install).
Run a test: echo "System Check" | piper ... | aplay (or however you pipe audio).
Look at OBS: Does the “Desktop Audio” meter bounce when Piper speaks?
- Yes: You are ready.
- No: You may need to install pavucontrol (PulseAudio Volume Control) in your RDP session and ensure the “Monitor of [Output Device]” is set as the default recording device.

Ready to paste that Stream Key and hit “Start Streaming”?

Me: Yep. I have my first confirmed streaming of weblogs onto YouTube. There’s details, like how to get a stream key these days (it’s changed) and the fact I had to set it to the RTMP legacy server. I had to start the session with this command:

nix shell nixpkgs#freerdp -c xfreerdp /v:192.168.10.100 /u:username /p:password /size:1280x720 /bpp:16 /rfx /cert:ignore

…but it works. I have the success assured moment. Tomorrow can go into the auto-start script. There’s a lot of little details to work out but now I know it’s going to work out. Some of my questions include whether that X11 automation I figured out how to do with autognome.py are still going to apply under XFCE. That and more you can respond to as we start wrapping up this article with a thorough recap so as to help kickstart me tomorrow.

Gemini 3 Pro: This is the “Signal Established” milestone.

You have successfully pierced the veil. You took a headless, secure, deterministic NixOS server in a DMZ, gave it a phantom head (XFCE/XRDP), and forced it to broadcast its internal state to the world via YouTube.

The fact that you had to use the “Legacy RTMP” protocol is a classic detail—OBS and YouTube are old friends, but sometimes they need to speak the old dialect to understand each other without the “Auto-Config” bloat.

Here is the comprehensive recap of this session to serve as the foundation for tomorrow’s automation work, along with the answer to your autognome.py question.

The Article Recap: “Forging the Glass Cockpit”

We started with a simple desire: Show the Logs. We ended up building a Virtual Broadcast Studio.

1. The Problem: The Headless Head We needed to run OBS (a graphical application) on honeybot (a laptop with a closed lid).

Attempt 1 (GNOME): We tried to leverage the existing GNOME desktop. It failed. GNOME + Systemd + XRDP + NVIDIA drivers created a “Black Screen of Death” spiral. The desktop environment was too heavy and too integrated with physical hardware to virtualize easily.
The Pivot: We realized we didn’t need a Workstation; we needed a Studio. We switched to XFCE.

2. The Solution: The Deterministic Studio We modified configuration.nix to bake the studio environment directly into the system OS.

Forced X11: We explicitly disabled Wayland (gdm.wayland = false) because automation tools live in the X11 world.
The Hardcoded Launcher: Instead of relying on fragile dotfiles (~/.xsession) that NixOS might ignore, we injected a shell script directly into the services.xrdp.defaultWindowManager config. This guarantees that when RDP connects, XFCE must launch.
Safe Mode Graphics: We temporarily disabled the NVIDIA AI acceleration to prevent driver conflicts with the virtual framebuffer (xorgxrdp). We are rendering on CPU (llvmpipe), which is perfectly adequate for a 720p stream of text.

3. The Winning Connection The magic command that finally bypassed the security warnings and color depth glitches:

nix shell nixpkgs#freerdp -c xfreerdp /v:192.168.10.100 /u:mike /p:*** /size:1280x720 /bpp:16 /rfx /cert:ignore

4. The Production Configuration

Resolution: 1280x720 (Native 720p).
Encoder: Software (x264) via CPU.
Protocol: RTMP (Legacy).
Source: Window Capture (xfce4-terminal running sonar).

The Automation Question: Will `autognome.py` work?

The Answer: Yes, and it will work better.

You asked if the wmctrl and xdotool logic from your autognome.py script will translate to XFCE.

XFCE is Pure X11: Unlike GNOME, which runs on top of a massive compositing layer (Mutter) that often blocks automation for security, XFCE’s window manager (xfwm4) is old-school X11 compliant.
Wmctrl Loves XFCE: wmctrl commands to switch desktops, move windows, and resize terminals will execute instantly and reliably.
Xdotool is Native: Sending keystrokes to terminals in XFCE is seamless.

The Only Changes Required:

Window Class Names: You will change gnome-terminal to xfce4-terminal.
Desktop Indices: You will need to verify if XFCE counts desktops starting at 0 or 1 (usually 0, same as GNOME).

In short: XFCE is the native habitat for the kind of “Amiga AREXX” scripting you want to do.

The Plan for Tomorrow: “The Ghost in the Machine”

Now that we can do it manually, we automate it.

The “Wake Up” Script: A script on your local machine that:
- Wakes up honeybot (if sleeping).
- Initiates the xfreerdp connection in the background (or creates a virtual session without a viewer).
The “Studio Director” Script (Remote): A script on honeybot that:
- Checks if OBS is running.
- If not, launches sonar in a terminal, positions it, launches OBS, and hits --startstreaming.
- Uses xdotool to ensure the layout is pixel-perfect every time.
The Voice: Integration of Piper TTS to read the logs as they scroll.

You have the signal. The channel is open. Rest well; tomorrow we teach the machine to run the show itself.

Signal Established: The Path to Automation

Me: Okay that does it for today. Many missions accomplished. Excellent starting point for tomorrow. Maybe I’ll just start a new one streaming and keep it going so I can peek in on it on YouTube between now and getting back to work.

Book Analysis

Ai Editorial Take

This treatise is an important blueprint for implementing the ‘cognitive viewport’ concept. It not only showcases a robust technical solution for real-time data visualization and broadcast but also powerfully anchors the metaphor of ‘Mobilegeddon’ to the emerging ‘AI-readiness’ imperative. The struggle detailed here underlines the real-world engineering required to build the eyes and ears for future AI agents, turning raw data streams into consumable narratives for humans and machines alike. It’s a foundational piece for demonstrating Pipulate’s role in the AI Age.

Title Brainstorm

Title Option: Building a Headless AI-Ready Broadcast Studio with NixOS and XFCE
- Filename: headless-ai-broadcast-studio-nixos-xfce
- Rationale: Clearly states the core components and the AI-readiness aspect, making it highly descriptive and searchable.
Title Option: From Tail to Stream: Real-Time Weblogs on YouTube via Headless NixOS
- Filename: tail-to-stream-weblogs-youtube-nixos
- Rationale: Emphasizes the input (tail) and output (stream) while highlighting the key technology and platform.
Title Option: The Virtual Studio: Headless XFCE and OBS for AI Age Monitoring
- Filename: virtual-studio-xfce-obs-ai-monitoring
- Rationale: Focuses on the ‘virtual studio’ concept and its application for AI-driven monitoring.
Title Option: NixOS as a Sovereign Observatory: Broadcasting Live Web Traffic
- Filename: nixos-sovereign-observatory-web-traffic
- Rationale: Uses Gemini’s powerful phrasing to convey the architectural independence and purpose.

Content Potential And Polish

Core Strengths:
- Demonstrates practical problem-solving in a complex, real-world scenario (headless NixOS, DMZ, streaming).
- Clearly articulates the ‘why’ behind technical choices (X11 over Wayland, XFCE over GNOME) for automation.
- Connects low-level technical implementation to the high-level vision of ‘AI Eyes’ and ‘Future-proofing in the Age of AI’.
- Provides concrete code snippets and commands for reproducibility and learning.
- Highlights the critical achievement of ‘Privacy-First Broadcasting’ and hash-masked IPs.
Suggestions For Polish:
- Expand on the broader implications of X11’s ‘Wild West’ nature versus Wayland’s security for automation beyond just OBS.
- Offer a more structured comparison table or section on GNOME vs. XFCE for this specific use case, detailing memory/CPU footprint considerations.
- Further elaborate on the ‘black screen of death’ and systemd crash, perhaps with anonymized log snippets if appropriate for the book context, to show the debugging process.
- Integrate the xfreerdp connection command more smoothly into the narrative as a declarative tool rather than a quick fix.
- Discuss the rationale for choosing 16 bpp color depth in xfreerdp and its impact on bandwidth/visuals.

Next Step Prompts

Develop the ‘Wake Up’ and ‘Studio Director’ scripts, utilizing xfreerdp in a virtual session and xdotool for complete headless automation of the OBS stream.
Integrate Piper TTS into the streaming setup, exploring methods for conditional narration of weblog patterns or notable events detected by sonar.py.
